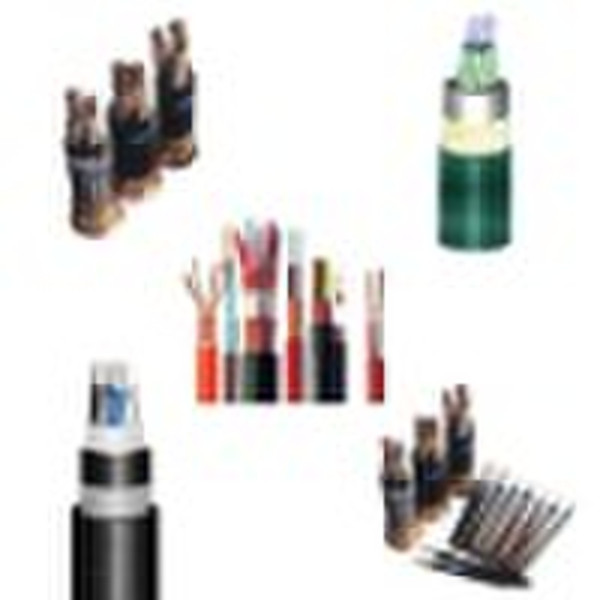

marine control cable
Dachun Luo
Contact person
Basic Information
| Application | Other |
|---|---|
| Conductor Material | Copper |
| Place of Origin | China (Mainland) |
1. EPR insulated shipboard control cable 2. EPR insulated fire-resisting shipboard control cable 3. PVC insulated shipboard control cable 4. PVC insulated fire-resisting shipboard control cable 5. XLPE insulated shipboard control cable 6. XLPE insulated fire-resisting shipboard control cable STANDARDS: IEC 60288 IEC60092-350 IEC60092-353 IEC60092-359 IEC60092 351 IEC60332-1 IEC60332-3Cat.A IEC61034-2 IEC 60754-2 3A Cable Construction: Conductor: tinned copper Insulation: EPR/PVC/XLPE Filler Tape Inner sheath: PCP/CSP/PVC/PO (SHF1, SHF2) Armored: tinned copper wire braid (Galvanized steel wire braid) Outer sheath: PolyvinylChloride/Cross-linked Polyolefin/ Thermoplastic Polyolefin Application: The cable is intended for communication, computer and information proceeding unit of shipboard and naval ship, and it is also available to metallurgical industry chemical works, power planted and mines etc. Certificates: CCS, LR, ABS, DNV, BV, GL, NK, RINA; 85 The radius of bend for the installation of cables: Cable structure features Over diameter of cable(D) Minimum internal bending radius Metal braided armored Any value 6D Non-armored D≤25 4D
Delivery terms and packaging
Packaging Detail: wooden reel Delivery Detail: 15-45 days
Port: China port
Payment term
Documents Against Payment
Letter of credit
Telegraphic transfer
-
